Was looking back at tom cockle's book to see the one of these that he built and he's got the bumpers added to the Tamiya kit so bumpers is it. I figure he knows better than I do........ I have also fixed the "odd" hub you guys spotted. I have WAY too many parts with these two kits. They each have a ton of spares anyway but x2, it takes me 20 min to find the sprue that I'm looking for. Easy to get mixed up on stuff, glad you guys are watchin what I'm doing!

About the workable suspension. Like you, I though the Tristar kit would be useful but after looking it over, I just couldn't see how to really use any of the primary parts and be sure that it would line up properly since it's made for the narrower wheels. I guess it's also made for the older generation dragon/tamiya kits becuase the universal fit tabs do not line up with this kit at all. If you want to make it workable with the kit parts and you can find a way to get them back apart, it's really easy to do. I'll take some pics to show you when I do my next update.

The DML bump stops are a little chunky but with the shurtzen plates and some eastern front mud, didn't think it was worth my time to hastle with it. I do however, appreciate your critical eye, keep it coming!
Reply With Quote top
  #32
Old 09-01-2010, 09:08 AM
armor fiend's Avatar
armor fiend armor fiend is offline
This model kills fascists

Join Date: May 2008
Location: Fort Liquordale
Posts: 743
On the forward hatch bump stops: I looked though my sources last night. No one says anything about them, but they definitely disappear by the mid H. Some late G's and early H's also did not have them, but many do. Since you're doing an early H, it's safe to leave them in, and probably not worth the hassle of trying to remove them.

I did not see any of the bump stops that Cockle was using (from photo etch) in the later H's and J's in his Modelling the Late Panzerkampfwagen IV. Admittedly, however, I wasn't really looking for them.
Reply With Quote top
  #33
Old 09-01-2010, 07:21 PM
chadperkins chadperkins is offline
vBench

Join Date: Nov 2006
Location: Nasvhille, TN
Posts: 605
Send a message via AIM to chadperkins
As for Tom's book..... the bump stops are on the F2 off course and the Ausf H "Fruhe", which is a 4th panzer division early H build just as the one I'm doing. Interestingly, they are not there in the build pics throughout but in the painted model pics on page 36 you can see where he's removed the rods and added the bumpers. He must have pondered on this as well...... Like a lot of things panzer IV, I think this one's open to interpretation and I'm stickin with what I got but I appreciate the input, keep it comin.
Reply With Quote top
  #34
Old 09-02-2010, 09:17 PM
chadperkins chadperkins is offline
vBench

Join Date: Nov 2006
Location: Nasvhille, TN
Posts: 605
Send a message via AIM to chadperkins

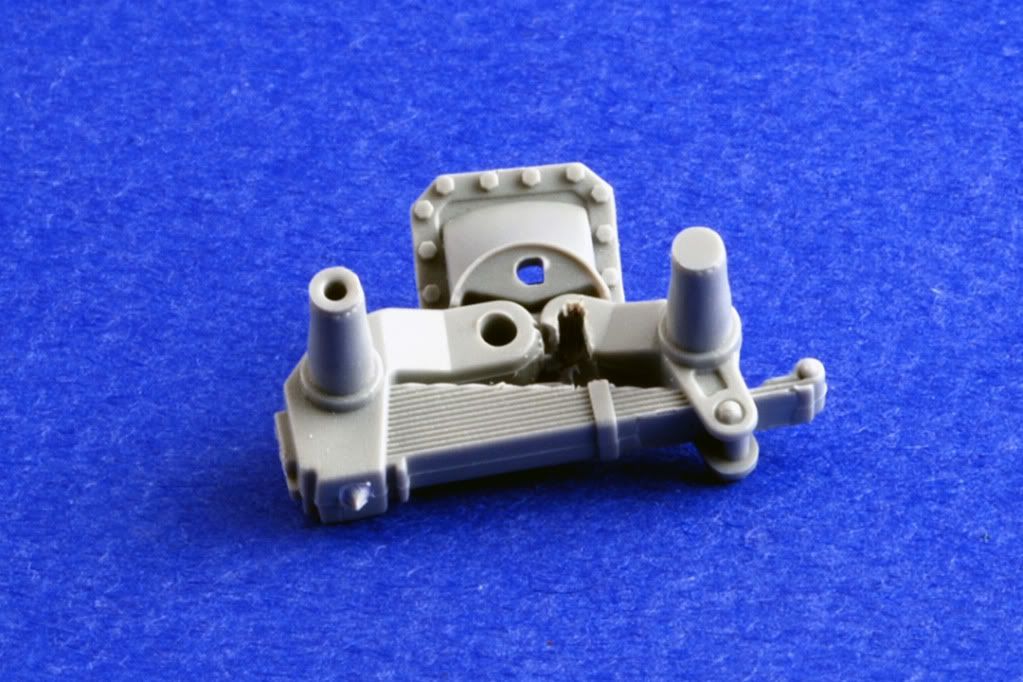

Few things to update guys.... First, I wanted to show how the suspension was modified to be workable since someone asked. It's very simple but hard to explain without pics so here goes.

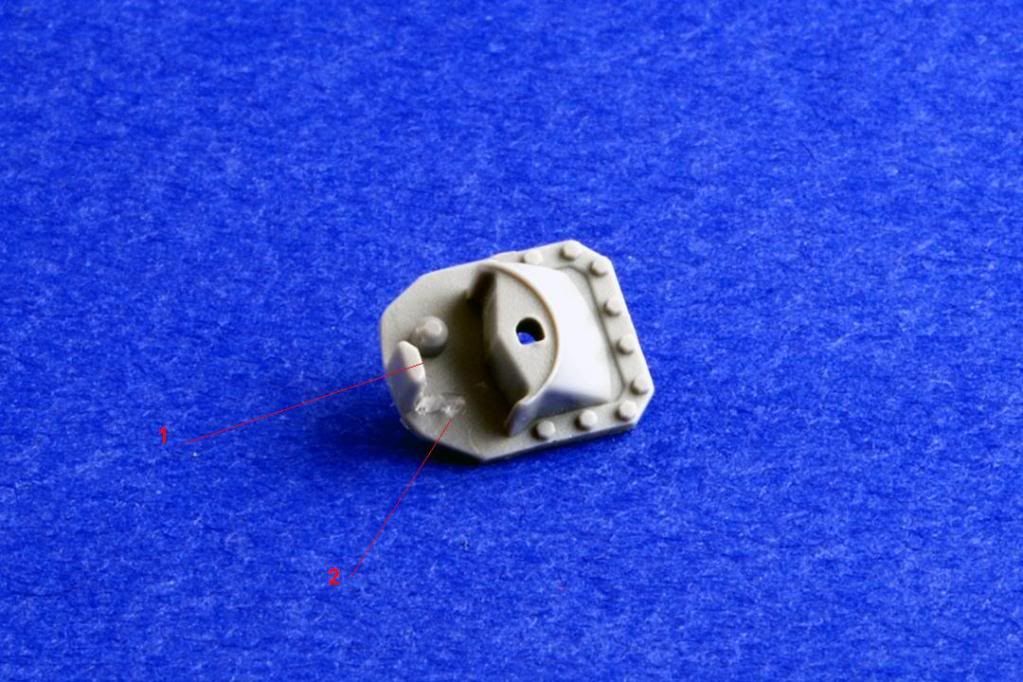

First pic shows where the smaller of the rods that hold on the "arms" is removed (2) and then you have to trim off the top and a little of the side of the the bottom middle part (1) that otherwise will restrict the movement of the "arms" after you have it together. You just have to use trial and error to figure out exactly how much to file away but it's not a whole lot.

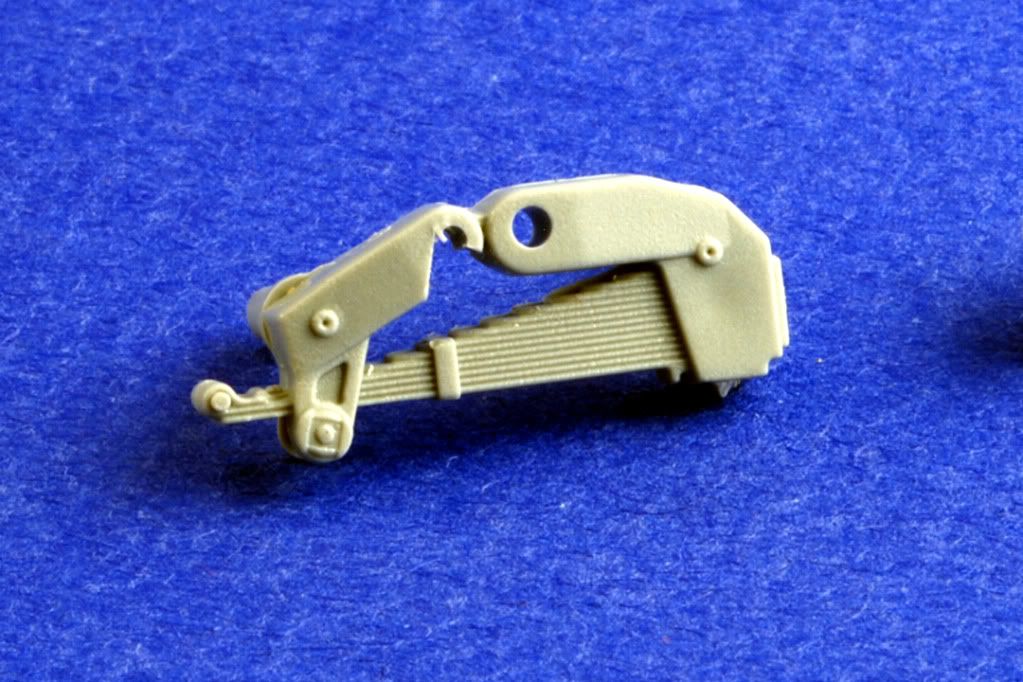

As for the "arms", just cut out where the small rod would have fit again to allow the "arms" to travel to each bumb stop.
