  #21
Old 01-22-2007, 11:42 AM
Ebbe Bergman Ebbe Bergman is offline
Ebbe Bergman

Join Date: Dec 2005
Location: Last I checked, in my home.
Posts: 581
Send a message via MSN to Ebbe Bergman
Ian that looks darn nice!!! Wish I could paint like that! Let us see the rest!
__________________

Reply With Quote top
  #22
Old 01-22-2007, 11:05 PM
lquah's Avatar
lquah lquah is offline
vBench

Join Date: Apr 2006
Location: Hong Kong SAR
Posts: 4,614
Ian

Great dio mate

Lawrence
__________________




Adrian Cronauer [imitating Walter Cronkite]: I just want to begin by saying to Roosevelt E. Roosevelt, what it is, what it shall be, what it was. The weather out there today is hot and shitty with continued hot and shitty in the afternoon. Tomorrow a chance of continued crappy with a pissy weather front coming down from the north. Basically, it's hotter than a snake's ass in a wagon rut.
Reply With Quote top
  #23
Old 02-07-2007, 07:06 AM
brokeneagle's Avatar
brokeneagle brokeneagle is offline
Brokeneagle

Join Date: Dec 2005
Location: Melbourne, Victoria, Aust.
Posts: 1,277
Thanks everyone,
sorry for the delayed response.
Andrew, thank you for the picture.....just what I was after.

Well, just a quick update on the base..............I rumaged through my building bits and found some stuff that looked like the rubble I was after.
...........................................
Still some modifying with the scaple but overall a good bunch of bits .
I positioned the broken pavement and then tried the tank.
............................

......................
......

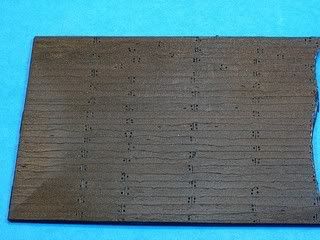

I purchased some wooden floor panels from the train shop recently and decided to give'em a run. I cut the sheet up to look like a smashed wooden floor - scaple blade and scissors did the trick.I measured the cut against the ruff position of the tank.
The angles were marked out on the board ready for the white glue.........
..
I then glued down the pavement and some cobblestone canvas print [again from the train shop] and covered the base in a thin film of white glue painted on with a wide brush. I then sprinkled a mix of fine gravel and plaster which was followed by some Verlinden bricks and tiles in small amounts were they would not be covered. I also addedsome ruff broken pieces of plaster debri. Nothing pretty about this stage.
........................................

You can also see the floor has been added as well. To raise it slightly I built some beams underneath [like a real floor] from plastruct rod and let some pieces stick out into the gaps with damaged ends.
..
I then placed some more coarse rubble and a broken anti tank 'thingy' [I would love to know what these were really called].
....................

..

And around the back as well................
So now I have this much done on the base without too much effort!
..............................................
................next is some more paint on the tank with just a touch of detailing here and there to bring up the wreck a bit
__________________
plastic Nymphomaniac

Last edited by brokeneagle; 02-07-2007 at 07:55 AM.
Reply With Quote top
  #24
Old 02-07-2007, 08:44 AM
Larry Bates's Avatar
Larry Bates Larry Bates is offline
vBench

Join Date: Aug 2005
Location: I know a guy who sells t-shirts at a nearby location to Willy's grave.
Posts: 4,246
Send a message via Skype™ to Larry Bates
Looks awesome!

Larry
__________________
These are beautiful people baby.....

Opening Laz's World on Ice next summer, no franchises. Just cold ice, and figure skaters, ring side bar service.

Reply With Quote top
  #25
Old 02-07-2007, 08:49 AM
lquah's Avatar
lquah lquah is offline
vBench

Join Date: Apr 2006
Location: Hong Kong SAR
Posts: 4,614
Looks great Ian Real nice. If I can just comment on the sidewalk. From the edge it looks like it's just been placed there. Maybe consider raising the floor of the house?

Lawrence
__________________




Adrian Cronauer [imitating Walter Cronkite]: I just want to begin by saying to Roosevelt E. Roosevelt, what it is, what it shall be, what it was. The weather out there today is hot and shitty with continued hot and shitty in the afternoon. Tomorrow a chance of continued crappy with a pissy weather front coming down from the north. Basically, it's hotter than a snake's ass in a wagon rut.
Reply With Quote top
  #26
Old 02-07-2007, 11:58 AM
David Diaz's Avatar
David Diaz David Diaz is offline
vBench

Join Date: Dec 2006
Location: Tucson, AZ
Posts: 1,534
Send a message via Yahoo to David Diaz
Outstanding work Ian!

Love the groundwork. It really looks as if the building has been pulverized! The wooden floor does look good.

Commenting on the sidewalk, I have to agree with Lawrence. I think the difference in height between the sidewalk and the floor is to steep. What I do suggest is maybe add the remains of the wall that ran along the sidewalk. As long as it doesn’t get in the way of the tank, make it a little higher than the sidewalk, that will make it look more as if a structure was there, and make the transition smoother.

I hope this is helpful

Dave
__________________

SCOUTS OUT!

"To know, that is Wisdom.
To use it, is the Art."

- Clive Barker

http://www.planetarmor.com/forums/fo...play.php?f=173
(Click to visit my v-Bench)
Reply With Quote top
  #27
Old 02-07-2007, 06:44 PM
tamigawa tamigawa is offline
vBench

Join Date: Jun 2005
Location: Minnesota
Posts: 2,844
awesome work! I agree with the others though...
__________________
www.fletcherwarren.com
Reply With Quote top
  #28
Old 02-07-2007, 08:31 PM
brokeneagle's Avatar
brokeneagle brokeneagle is offline
Brokeneagle

Join Date: Dec 2005
Location: Melbourne, Victoria, Aust.
Posts: 1,277
Thanks guys

I agree the pavement /floor needs more.
The pavement height and the floor will be fixed with the third rubble stage.Iam limited with the floor height by the fireplace level.
I have not finished with the rubble yet as I will need to undercoat what is currently there, then finish the tank, position it on the base, then add the last lot of rubble [which will be over parts of the tank and along that whole section] - plus at this stage I was going to try add the small section of wall [I can't do this properly until the tank is there].
This dio will be different to my others as it will not be about the Tank but the figures. The Tiger and building will be serving only as a backdrop/ stage and the figures will be the centre piece.
Thanks again.........
__________________
plastic Nymphomaniac

Last edited by brokeneagle; 02-08-2007 at 03:48 AM. Reason: edited text
Reply With Quote top
  #29
Old 02-08-2007, 02:20 PM
jagdpanzer jagdpanzer is offline
vBench

Join Date: Jun 2006
Posts: 413
Superb layout! I´m looking forward to an update.
Reply With Quote top
  #30
Old 02-08-2007, 08:55 PM
Sticky's Avatar
Sticky Sticky is offline
vBench

Join Date: Aug 2004
Location: 3rd Rock from the Sun
Posts: 1,594
I like it. Please continue. I sure could use a paint fix too!
__________________
Reply With Quote top
