510 King Tiger

I needed a paint fix on Saturday night to keep the AMS away during my BR52 build, so I got some already started stuff that was hanging around and formed some ideas around a interesting dio with a final Tiger picked up by 510 direct from the Henschel factory - March 29 1945. There is still debate over the cam scheme on these tanks as the red brown and olive green are hard to pick in B+W. One thing that is certain was the order issued in late november 1944 for armour components to be painted in dark green as a factory base coat with red brown and yellow to be sprayed over this. This was meant to come into effect on 1st March 1945. I have seen only two photos of one of these tanks near Kassel - knocked out. It sports a base coat with lighter cammo and irregularly shaped circles on the lighter color.
....................
Photos of newly finished turrets waiting outside the Henschel factory seem to be in single color base coat.

I thought it would be fun to explore the possibilities here......... orders were often put on hold or intergrated as retro fitted parts were run out and new ones then used. I felt a nice paint job, and one that would be a bit topical, would be a Tiger 2 produced during this period from a damged one . One of the KTigers picked up by 510 could well have been a fix up, with new paint etc. I also doubt weather all these tanks were painted the same with the circular marks and dark yellow - the paint job looks very rushed, almost like the unit had applied the lighter color.
I have gone with this idea, creating a late model Tiger 2 with a new, as yet unpainted, Red Primer turret, fitted to a used chassis that has been 'fixed -up' with a hastey overspray of green over the new solid red primer base applied earlier to the chassis when it first came in for repair - this would have made it an jan/Feb build chassis which matches my mods. The turret has just been grabbed off the line outside the factory and put on the chassis to get it out the door [without applying the green basecoat].
My dio is set a couple of months later, the paint has been damaged and is already comming off the chassis through battle damage and weathering by May '45. It now lies knocked out and bleeding silently, as the final skirmishes come to a halt accross Germany..[I CAN CRAP -ON CAN'T I ].
I started with a COMPLETED TAMIYA King Tiger that needed paint but already had the detailing done for a Jan/Feb issue tank [Aber brass, VP resin engine bay and all the scratch mods done]. This tank has some slight shelf damage so I thought it would be ideal for this project as some of the tank will be covered with debri - good for hiding missing and broken parts. This will need a little work but would allow me to get away from the detailing for a while.....
....
I base coated it with Tamiya black then gave it a ruff , light overspray with Tamiya RED Brown. Please excuse the photo's here as the lights were too bright and took out my color and contrast to a certain extent.
I next added a more definate coat of Pollyscale Panzer RED Brown - but still patchy.
.....................

I had to remove the wheels for re-painting as well as to fit on the dio base. These had to be broken - off because they had been glued earlier. They will be OK as there will be a lot of debri covering a lot of the bits and pieces as it is gong to be sitting next to a building.
........

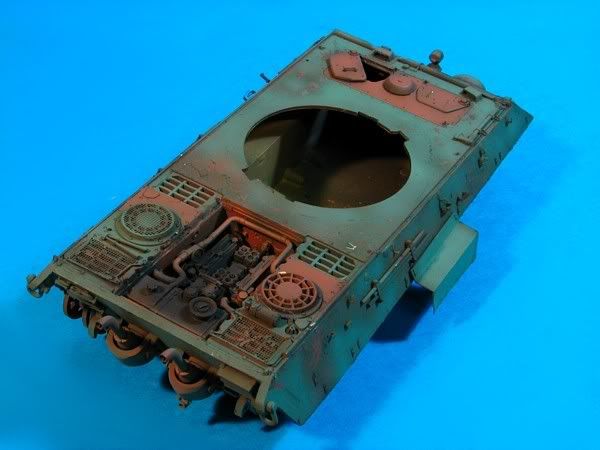

I made some of the sections of the hull more intense in color so that they would look as though they had been replaced/ retro fitted............. I made these red brown as though they would have come from earlier stock that had not beeen used yet.

.......

Next I added the maskol to cover the red brown areas I wanted left sharp then oversprayed with Tamiya black green. I applied this coat in an uneven way to simulate a hastily done dark background base.

.
..........................

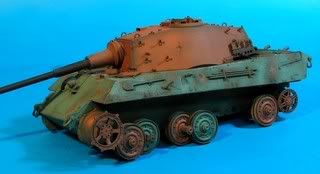

The Primer look has nicely offset the green and has come out just how I wanted.

........

Next up was the ghost coat with Testors Panzer Olive green to give it that worn and faided start to the detailing stage.
..
................................

.................................

........
....................................

..........................

Next up the detailing and the base............. see ya then.
__________________
plastic Nymphomaniac

Last edited by brokeneagle; 01-22-2007 at 07:07 AM.
Reply With Quote top
  #2
Old 01-21-2007, 07:36 AM
the_dagger's Avatar
the_dagger the_dagger is offline
vBench

Join Date: Jan 2006
Location: Nyköping, Sweden
Posts: 231
Send a message via AIM to the_dagger Send a message via MSN to the_dagger
Looks realy great! Can't wait to see the next update!
Reply With Quote top
  #3
Old 01-21-2007, 07:55 AM
lquah's Avatar
lquah lquah is offline
vBench

Join Date: Apr 2006
Location: Hong Kong SAR
Posts: 4,614
Ian

Looks great I really like you painting style - very realistic and superbly executed.

Lawrence
__________________




Adrian Cronauer [imitating Walter Cronkite]: I just want to begin by saying to Roosevelt E. Roosevelt, what it is, what it shall be, what it was. The weather out there today is hot and shitty with continued hot and shitty in the afternoon. Tomorrow a chance of continued crappy with a pissy weather front coming down from the north. Basically, it's hotter than a snake's ass in a wagon rut.
Reply With Quote top
  #4
Old 01-21-2007, 09:26 AM
The Mango Kid's Avatar
The Mango Kid The Mango Kid is offline
vBench

Join Date: Feb 2006
Location: Östersund, Sweden
Posts: 101
Hi Ian, that Tiger II looks very nice...
That faded green looks terrific too !

Kris
Reply With Quote top
  #5
Old 01-21-2007, 09:45 AM
David Diaz's Avatar
David Diaz David Diaz is offline
vBench

Join Date: Dec 2006
Location: Tucson, AZ
Posts: 1,534
Send a message via Yahoo to David Diaz
Great work Ian!

You seem to have an ability for picking up odd and interesting subjects. It adds variety to the hobby. I think this idea is a wonderful one, especially since the hasty applied paint and “rush” job is one of the hardest effects to achieve. I will be following your post with great interest.

Dave
__________________

SCOUTS OUT!

"To know, that is Wisdom.
To use it, is the Art."

- Clive Barker

http://www.planetarmor.com/forums/fo...play.php?f=173
(Click to visit my v-Bench)
Reply With Quote top
  #6
Old 01-21-2007, 11:03 AM
tamigawa tamigawa is offline
vBench

Join Date: Jun 2005
Location: Minnesota
Posts: 2,844
looks awesome!!
__________________
www.fletcherwarren.com
Reply With Quote top
  #7
Old 01-21-2007, 11:31 AM
Panzergrenadier's Avatar
Panzergrenadier Panzergrenadier is offline
vBench

Join Date: Jan 2006
Location: Estonia
Posts: 3,017
SUPER!

I really like it. Looking foward to the next update.

Ohh.. one thing that puzzles me is the first picture you posted. I have the very same picture and there is no swastika on the tank. How can it be so, some kind of edited version?

Siim


__________________
New Estonian modelling site:
http://myplasticmodels.com/

Reply With Quote top
  #8
Old 01-21-2007, 11:42 AM
tamigawa tamigawa is offline
vBench

Join Date: Jun 2005
Location: Minnesota
Posts: 2,844
siim, can you post the pic? Alot of pics have swastikas edited.
__________________
www.fletcherwarren.com
Reply With Quote top
  #9
Old 01-21-2007, 12:51 PM
chadperkins chadperkins is offline
vBench

Join Date: Nov 2006
Location: Nasvhille, TN
Posts: 605
Send a message via AIM to chadperkins
love it, are you going to leave it as a wreck or a working frankenstein tank?
Reply With Quote top
  #10
Old 01-21-2007, 03:26 PM
Evan August Evan August is offline
vBench

Join Date: Mar 2005
Location: Platteville, WI
Posts: 1,231
Really Cool Ian!
