  #11
Old 03-12-2006, 10:35 PM
Larry Bates's Avatar
Larry Bates Larry Bates is offline
vBench

Join Date: Aug 2005
Location: I know a guy who sells t-shirts at a nearby location to Willy's grave.
Posts: 4,246
Send a message via Skype™ to Larry Bates
Ian,

WOW, thats one BIG model! Looks like Mucho work. The speed I build I'd probably never finish one. :lol:

Larry
__________________
These are beautiful people baby.....

Opening Laz's World on Ice next summer, no franchises. Just cold ice, and figure skaters, ring side bar service.

Reply With Quote top
  #12
Old 03-13-2006, 03:39 AM
brokeneagle's Avatar
brokeneagle brokeneagle is offline
Brokeneagle

Join Date: Dec 2005
Location: Melbourne, Victoria, Aust.
Posts: 1,277
G'day Larry,
nice to hear from you. Yes, a lot of work but very interesting with lots of detail. I have really built two so its been A LOT of work. :lol:
__________________
plastic Nymphomaniac
Reply With Quote top
  #13
Old 03-13-2006, 04:30 AM
brokeneagle's Avatar
brokeneagle brokeneagle is offline
Brokeneagle

Join Date: Dec 2005
Location: Melbourne, Victoria, Aust.
Posts: 1,277

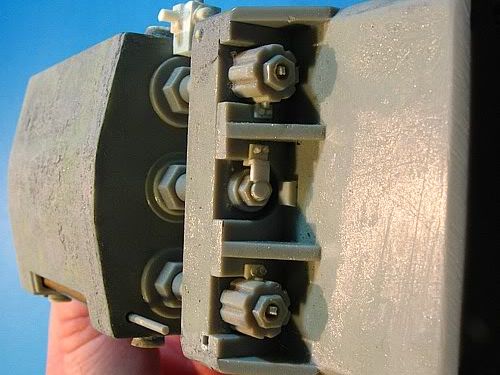

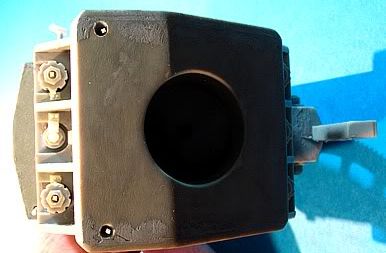

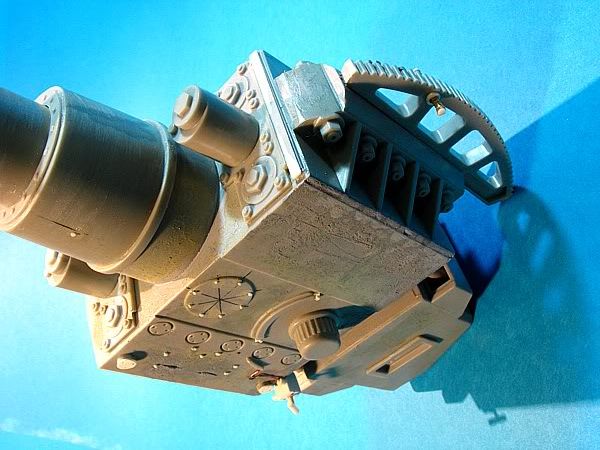

Some more shots of the gun mantlet area.
DML IS IN THE LIGHT GREY.
TRUMPETER IS IN SAND.
..

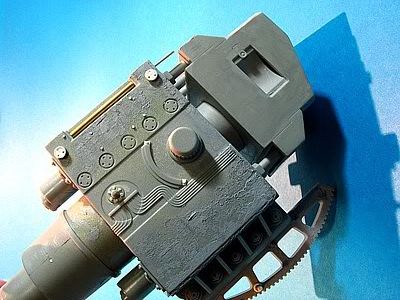

I added heaps of texture to simulate the rough sand casting that these things had. Close up shots show this surface to be REALLY rough.

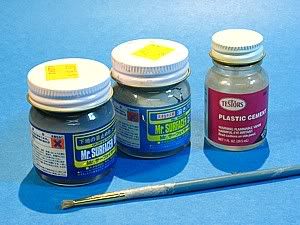

Both kits are as smooth as a baby's bum so I gave the plastic some texture with some Testors liquid cement and a brush that I have cut down to a short stump for just this purpose.

After a couple of coats of this with stippling the plastic in between, I add some Mr Surfacer 500. I stipple this as well, with two coats, then gave it a light sanding to take off the high spots. If it needs a little more I then use the 1000.
....................................

..
I had to add a brass rod to the bottom of the DML were as the trump. had it already. Also take note of the shape of the large nuts between the kits
........
I would have given the DML mantlet another sanding though if I had gone ahead with it. You can see quite clearly the extremely ruff cast to the mantlet in the cropped shot from allied and axis.Some other shots I have seen show the top and sides of some of the other gun mantlets and the textures were all different but all very ruff.
....................................
........................................

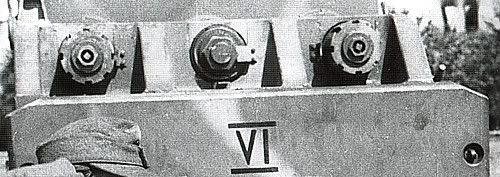

Another crop shot[right] shows the nuts etc that needed to be added - I just wish my P&D was up to it as it seems to punch them out with weird tops more often than not.
__________________
plastic Nymphomaniac
Reply With Quote top
  #14
Old 03-13-2006, 07:48 AM
brokeneagle's Avatar
brokeneagle brokeneagle is offline
Brokeneagle

Join Date: Dec 2005
Location: Melbourne, Victoria, Aust.
Posts: 1,277

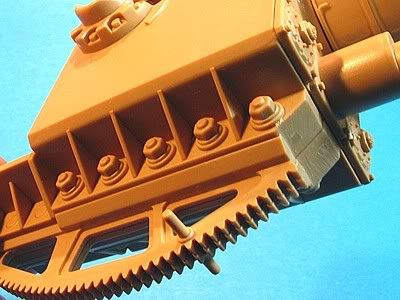

The trumpeter mantlet also gives you the option of building it without the top section- as they used to remove this for rail travel when tunnels were on the route.
.............................
This section would be fairly greasy withe the centre exposed [i think] so that is how I ended up potraying it as you will see as we progress.
.......................

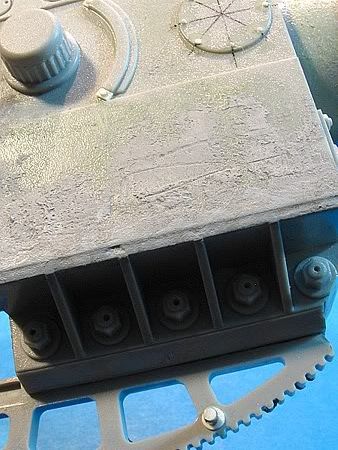

Texture before a light sanding.
...........................
The base for the breech is better shaped as well.

................
The two two breech block's side by side..............

.................

A world of difference in detail and accuracy.
__________________
plastic Nymphomaniac
Reply With Quote top
  #15
Old 03-13-2006, 09:29 AM
amba's Avatar
amba amba is offline
vBench

Join Date: Oct 2005
Location: Switzerland (Zug)
Posts: 607
This is great stuff Ian

I sure wont pick the DML offering on this one. That really is a great difference in detail. Thanks for the heads up

Keep it coming ...

-Ambjoern
Reply With Quote top
  #16
Old 03-13-2006, 04:30 PM
loneranger20 loneranger20 is offline
New Member

Join Date: Nov 2005
Location: Comox B.C.
Posts: 5
Keep up the good work, Ian....

It is greatly appreciated..

Mike
Reply With Quote top
  #17
Old 03-13-2006, 06:23 PM
MrPlasticmodel's Avatar
MrPlasticmodel MrPlasticmodel is offline
vBench

Join Date: Feb 2006
Location: Denmark, the suburbs of Copenhagen
Posts: 214
Hi Ian
This is good , I will for sure go for the Trumpeter version now , after seeing your photos there is really so much difference in detail between the two kits.
Just let the pictures come
__________________
Is it a plasticmodel or ..ooh It is a model !!
Just have fun --Build it!

Best regards

Dan Seifert


Reply With Quote top
  #18
Old 03-13-2006, 09:47 PM
Larry Bates's Avatar
Larry Bates Larry Bates is offline
vBench

Join Date: Aug 2005
Location: I know a guy who sells t-shirts at a nearby location to Willy's grave.
Posts: 4,246
Send a message via Skype™ to Larry Bates
Ian,
Great texturing on the mantlet!

Larry
__________________
These are beautiful people baby.....

Opening Laz's World on Ice next summer, no franchises. Just cold ice, and figure skaters, ring side bar service.

Reply With Quote top
  #19
Old 03-13-2006, 10:03 PM
brokeneagle's Avatar
brokeneagle brokeneagle is offline
Brokeneagle

Join Date: Dec 2005
Location: Melbourne, Victoria, Aust.
Posts: 1,277
Quote:
Originally posted by Larry Bates@Mar 14 2006, 01:47 PM
Ian,
Great texturing on the mantlet!

Larry
Thanks Larry.
It comes up looking better when painted in later shots.
__________________
plastic Nymphomaniac
Reply With Quote top
  #20
Old 03-13-2006, 10:06 PM
Larry Bates's Avatar
Larry Bates Larry Bates is offline
vBench

Join Date: Aug 2005
Location: I know a guy who sells t-shirts at a nearby location to Willy's grave.
Posts: 4,246
Send a message via Skype™ to Larry Bates
Cool,

You gonna post them or what? :lol:

Larry
__________________
These are beautiful people baby.....

Opening Laz's World on Ice next summer, no franchises. Just cold ice, and figure skaters, ring side bar service.

Reply With Quote top
