i got the idea for a mk3j in a recovery area from the photo below that I found in the Concord Publication, The Panzerkampfwagen 3 at War.

This shot has the tank with a long barrel but I wanted to model the earlier version with the 5cm L/42.

I also wanted the earlier style engine deck .

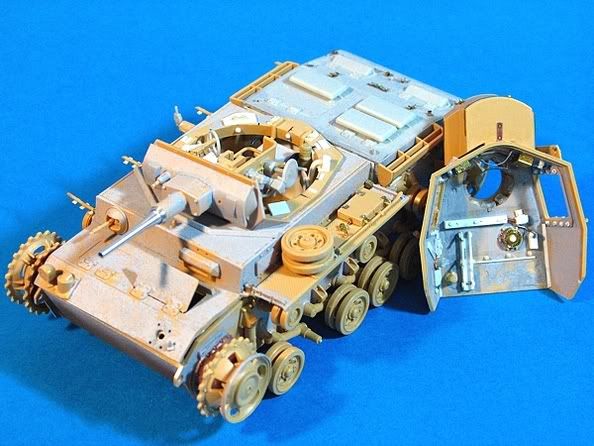

The two kits used were a Tamiya Mk3L and a Dragon Mk3 Stug f. I 'borrowed' the rear deck from the stug kit which I thebn ahd to marry onto the Tamiya one. This fit then required a reshaping with modeling clay and putty on the rear end to backdate to match the engine deck.





I then added aber brass and took the guards off as in the photo. I also drilled out the brake cooling air intake vent as I removed the cover as in the photo.

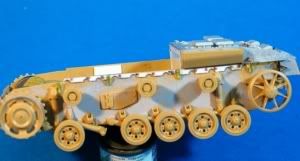

I also used Kasten final drive housings [brown in photo]top plate is only sitting on chassis.
I then added some scratch stuff like the scalloping under the guards and interior stuff that wasn't Aber but needed to be there to fill in when you looked through the open hatch.




more to come.......
__________________
plastic Nymphomaniac
Reply With Quote top
  #2
Old 12-25-2005, 12:27 AM
Larry Bates's Avatar
Larry Bates Larry Bates is offline
vBench

Join Date: Aug 2005
Location: I know a guy who sells t-shirts at a nearby location to Willy's grave.
Posts: 4,246
Send a message via Skype™ to Larry Bates
Nice build you got going there Ian,

Welcome to the Planet.

Larry
__________________
These are beautiful people baby.....

Opening Laz's World on Ice next summer, no franchises. Just cold ice, and figure skaters, ring side bar service.

Reply With Quote top
  #3
Old 12-25-2005, 12:52 AM
brokeneagle's Avatar
brokeneagle brokeneagle is offline
Brokeneagle

Join Date: Dec 2005
Location: Melbourne, Victoria, Aust.
Posts: 1,277
Thanks Larry.
__________________
plastic Nymphomaniac
Reply With Quote top
  #4
Old 12-25-2005, 04:24 PM
sam_dwyer's Avatar
sam_dwyer sam_dwyer is offline
vBench

Join Date: Mar 2005
Location: shaking my head in disbelief
Posts: 567
Gday Hilly,

Hope Santa brought the kids what they wanted, and you and Sally some peace and quiet on Christmas morning!

The III is looking killer!

Sam
__________________
The day this is work, the love of it dies.
Reply With Quote top
  #5
Old 12-25-2005, 04:55 PM
brokeneagle's Avatar
brokeneagle brokeneagle is offline
Brokeneagle

Join Date: Dec 2005
Location: Melbourne, Victoria, Aust.
Posts: 1,277
PART 2
Added Finemolds periscopes

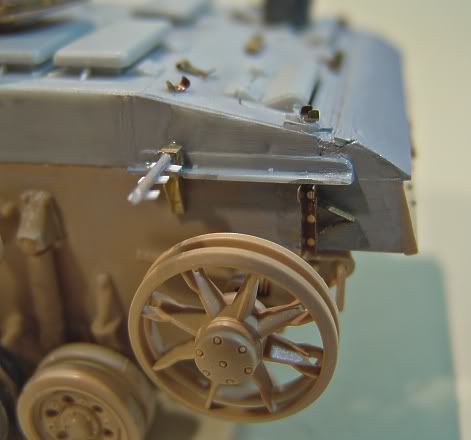

Some Aber lovin'....... more rework needed on the side rear finish!

Nearly ready for paint.

I then went about creating the ground work and tracklink positioning etc and positioned the tank on the base to test fit. At this point everything has been glued down except the tank itself . Also the figure and some of the accessories.I am using the photo in the first post as a rough guide but would still like to catch the feel of the photo.

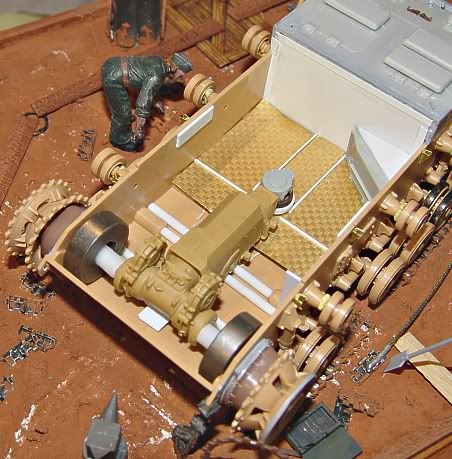

The brakes are not the right shape but the large washes are only working as shape fillers to hold the tranny. They will be hidden once the top is on and sealed.

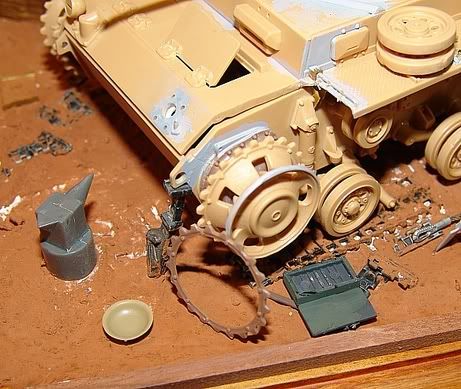

Front sproket ring is going to be off .....pretty much because I got some spares from the Kasten set.
Does anyone have any references on what the drive wheel looks like on a mark 3 with the sproket ring detached?

STAGE 3 -- PAINTING THE BASE COLOURS AND THE GROUNDWORK.
__________________
plastic Nymphomaniac
Reply With Quote top
  #6
Old 12-25-2005, 05:03 PM
brokeneagle's Avatar
brokeneagle brokeneagle is offline
Brokeneagle

Join Date: Dec 2005
Location: Melbourne, Victoria, Aust.
Posts: 1,277
Quote:
Originally posted by sam_dwyer@Dec 25 2005, 04:24 PM
Gday Hilly,

Hope Santa brought the kids what they wanted, and you and Sally some peace and quiet on Christmas morning!

The III is looking killer!

Sam
Thanks, Same back at ya!
What goodies did you get?
__________________
plastic Nymphomaniac
Reply With Quote top
  #7
Old 12-26-2005, 02:33 AM
Guest_brokeneagle
Guest

Posts: n/a
This stage is pretty much just the undercoat gray, ground work snowed up 75%, and figure base coated. The figure is a Hornet and was perfect for what I wanted. I decided to go with a lone sentry guarding the recovered tank in a holding area somewhere near Stalingrad.





I weathered the interior ,fixed the back deck join and secured the upper hull.







Next is the winter cam and wethering................
Reply With Quote top
  #8
Old 12-26-2005, 02:48 AM
James Tainton's Avatar
James Tainton James Tainton is offline
vBench

Join Date: Mar 2004
Location: I'm not really sure... I just woke up and found my
Posts: 4,724
Man - you are Fast!
__________________

Click for ARMOUR WORKSHOP
Reply With Quote top
  #9
Old 12-26-2005, 03:32 AM
brokeneagle's Avatar
brokeneagle brokeneagle is offline
Brokeneagle

Join Date: Dec 2005
Location: Melbourne, Victoria, Aust.
Posts: 1,277
James,
I'm cheating....... I have already reached the weathering stage and had the backdated photos ready for posting. The next post is where I am actually up to at present.
I also forgot to logon on my last post .......lost in modelling madness! :lol:
__________________
plastic Nymphomaniac
Reply With Quote top
  #10
Old 12-26-2005, 09:35 PM
brokeneagle's Avatar
brokeneagle brokeneagle is offline
Brokeneagle

Join Date: Dec 2005
Location: Melbourne, Victoria, Aust.
Posts: 1,277
Winter Cam stage.
Wow, was xmas busy....... now thats over and done with , paint, the bit I like best!

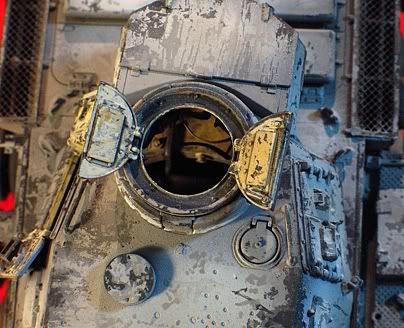

The tank got a light white coat over maskol chips, then a more intense coat in patch's. Then some hand chipping and some nice half frozen mud from Mother Russia.











next is the stains, dirt ,decals and a bit more base work.
